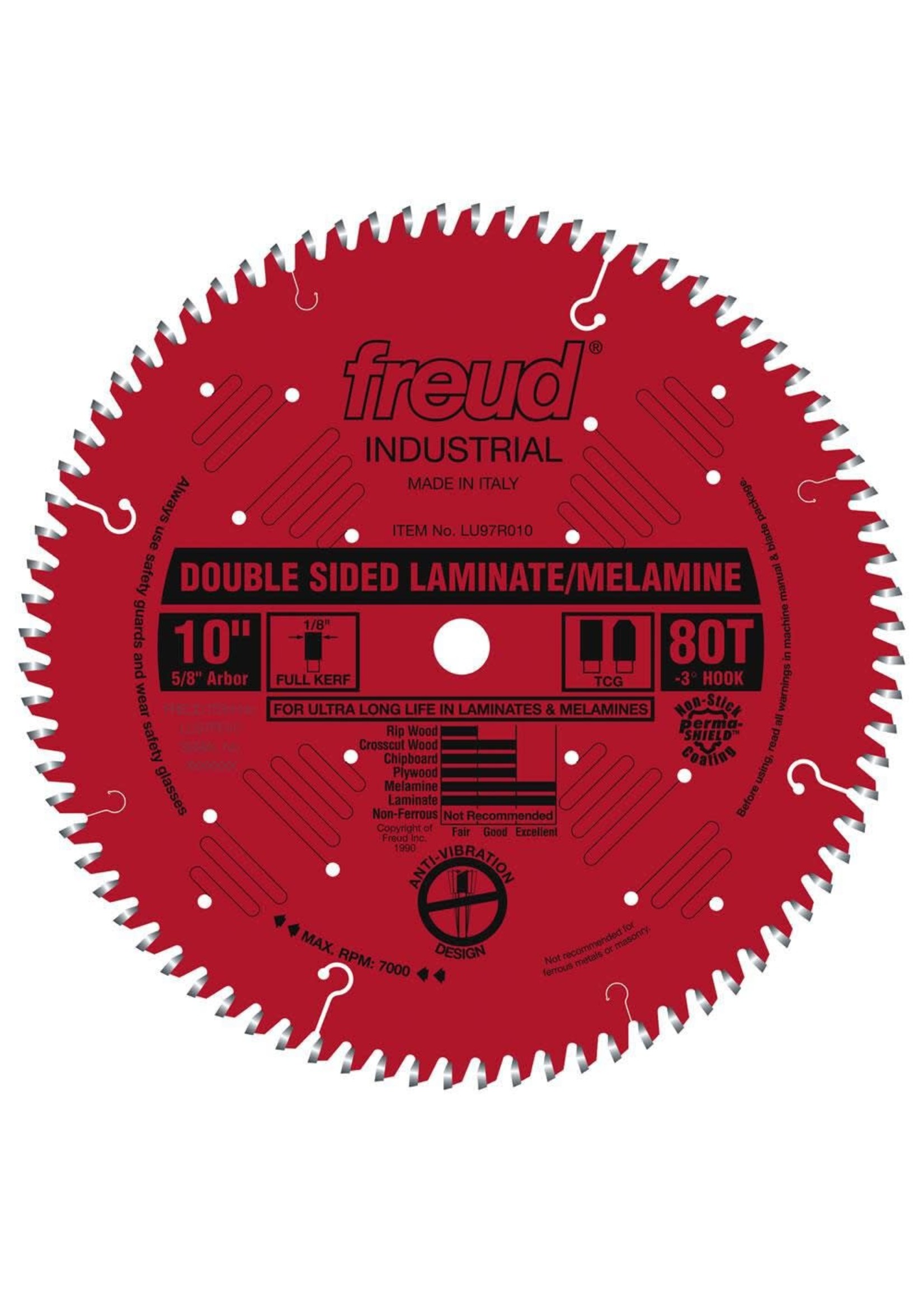

  • Freud/Diablo 10" Double Sided Laminate/Melamine Blade LU97R010

10" Double Sided Laminate/Melamine Blade LU97R010

$157.00
Excl. tax

Laminates and melamines
Premium TiCo™ HI-Density Carbide Laminate Blend for Maximum Performance
Triple Chip Grind (TCG) Tooth Design with a positive hook angle for long life in production applications

The rating of this product is 0 out of 5

(0)
In stock

PRODUCT

OVERVIEW



Designed to give long life and excellent finish on the top and bottom of laminates, melamine & veneered plywood. The laser-cut anti-vibration design yields the plate acoustically dead. This reduces the sideways movement of the cutting edge to prevent chipping in manmade materials such as laminates. This dramatically extends cutting life and finish. No scoring blades needed with this blade!

  • Premium TiCo™ HI-Density Carbide Laminate Blend for Maximum Performance
  • Triple Chip Grind (TCG) Tooth Design with a positive hook angle for long life in production applications
  • Laser-Cut Anti-Vibration Slots drastically reduce vibration and sideways movement in the cut extending blade life and giving a crisp, splinter-free flawless finish
  • Perma-Shield™ Non-Stick Coating reduces blade drag, protects the blade from corrosion and pitch build-up.
Ideal For: Excellent finish on the top and bottom of laminates, melamine & veneered plywood. Depth of cut (1/4" min to 1-5/8" max)

TECHNICAL SPECIFICATIONS
ARBOR 5/8"
DIAMETER 10"
GRIND TCG
HOOK ANGLE -3°
KERF .126"
PLATE .087"
TEETH 80

UPC CODE:008925032359

SUPPLIER PART#LU97R010
