PRODUCT
OVERVIEW

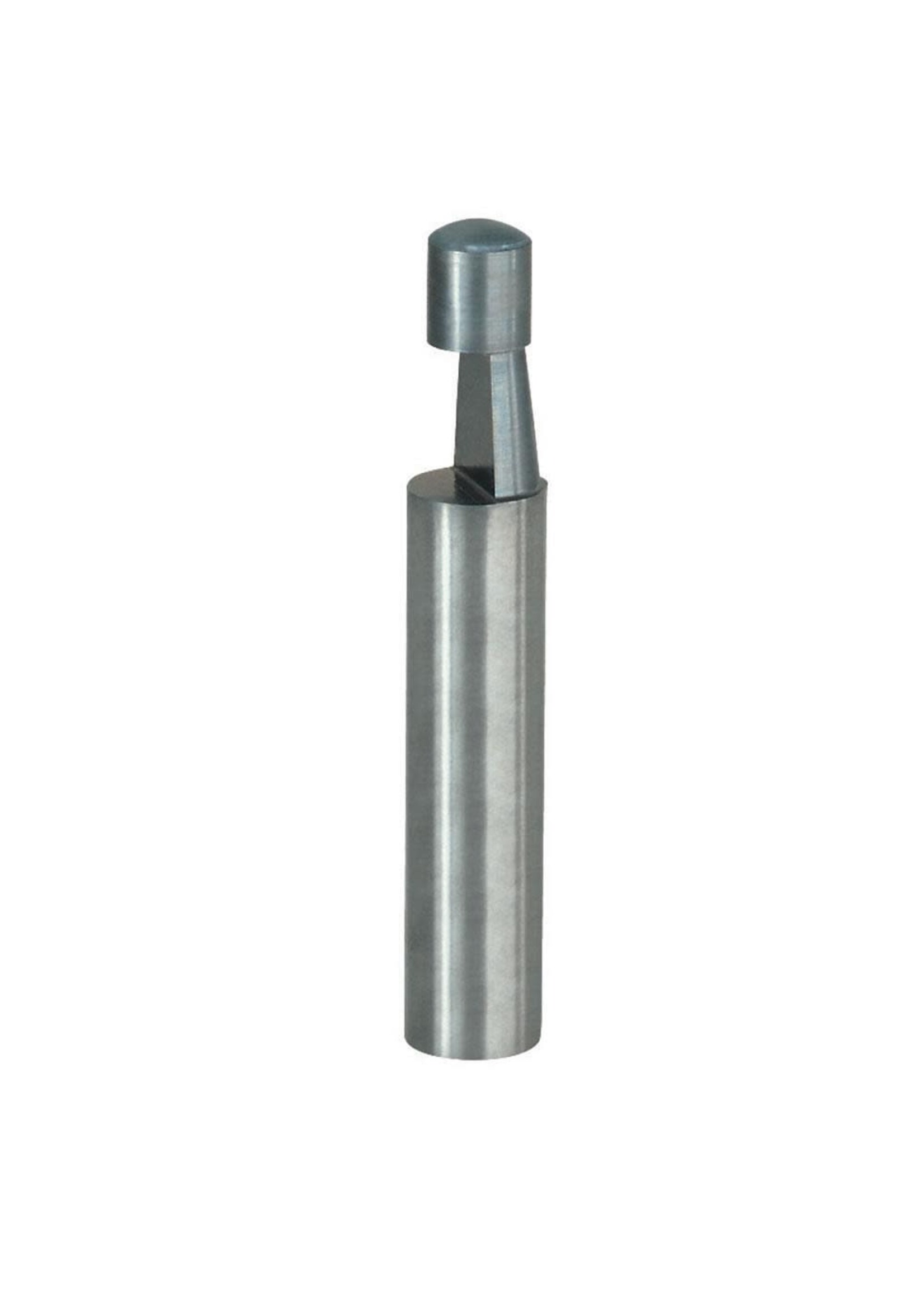

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
ANGLE (D) | 7° |
BEARING DIA. (B) | 3/16" |
NUMBER OF CUTTERS | 2 |
OVERALL DIA. (D) | 1/4" |
OVERALL LENGTH (H) | 1-1/2" |
SHANK DIA. (A) | 1/4" |
CARBIDE HEIGHT (H) | 1/4" |
MAX RPM | 24000 |
UPC CODE:008925381280
SUPPLIER PART#66-100
