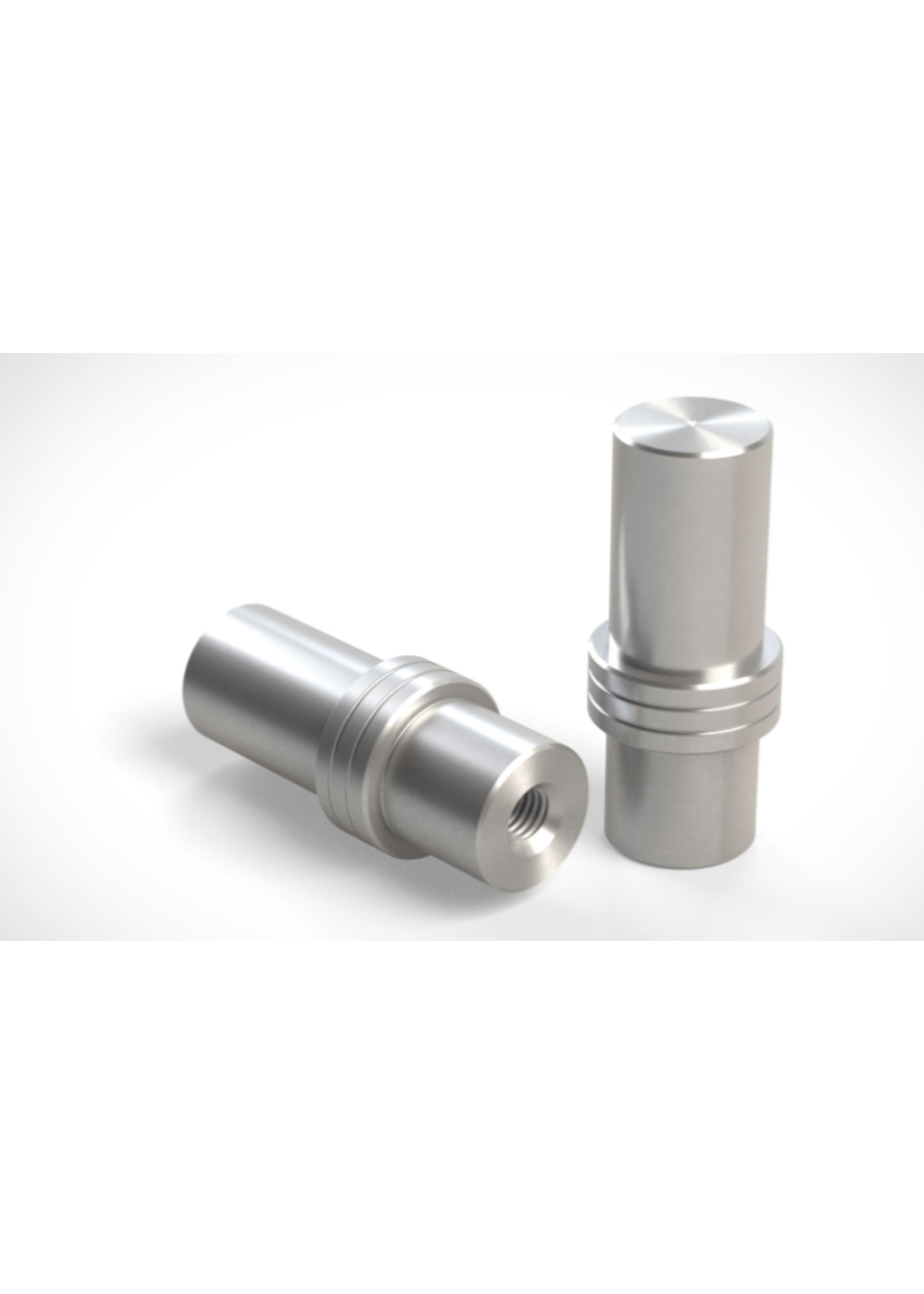

Low Profile Bench Dogs Designed To Clear Your Track Saw

Our DoubleGroove™ Tall Dogs, Dog Rail Clips, and M8 SpeedKnobs are a popular means of positioning and securing your guide rail to a 20mm worktop. While our Tall Dogs afford a maximum level of adjustability in the thickness of material you can slide underneath the guide rail and cut, there is one trade-off: the Tall Dogs can interfere with the motor housing on the Festool TS55 and TS75 as they are moved along the guide rail. If you have a large enough 20mm table and don't tend to utilize the full length of your table when making cuts, you may never encounter this limitation. But for those using a standard Festool MFT/3 or smaller 20mm work surface, the low profile of Stubby Dogs means you can now cut along the full length of your guide rail.

Stubby Dogs are recommended for cutting materials one inch (25.4mm) thick or less. Utilize them in conjunction with Dog Rail Clips and M8 SpeedKnobs to position and secure your guide rail for cutting. For thicker materials, we recommend our Tall Dogs.

• Low Profile Design: Short enough to clear the TS55 or TS75 track saw motor housing when plunge cutting materials one inch (25.4mm) and under.
• Easier to Use: Twin grooves running along the collar make DoubleGroove Dogs easier to remove than other dogs on the market; no more stuck dogs!
• A Perfect Fit: Precision machined to exacting tolerances, with a diameter of 19.9mm to strike the perfect balance between solid, secure mounting and ease of insertion/removal.
• Ideal for Custom Worktops: If you've made your own perforated worktop based on the 20x96mm standard and aren't quite sure if your tolerances are perfect, you'll likely find DoubleGroove Dogs to be a better choice. Their twin collar grooves will make it easier to remove dogs that might become "too snug," and a swept undercut along the collar means DoubleGroove Dogs will mount flush even if your holes have tearout.
• Clampable: Each dog includes an M8x1.25 threaded hole, perfect for use with our SpeedKnobs to secure the dogs inside your 20mm perforated worktop. (If you already have the knobs from Festool's 488030 Clamping Elements, those will work too, but you'll find our SpeedKnobs to be much faster and easier to thread.)
• Material: 6000 series aluminum alloy, T5 tempered and anodized clear

UPC CODE:859448007269

SUPPLIER PART#61-408 A
