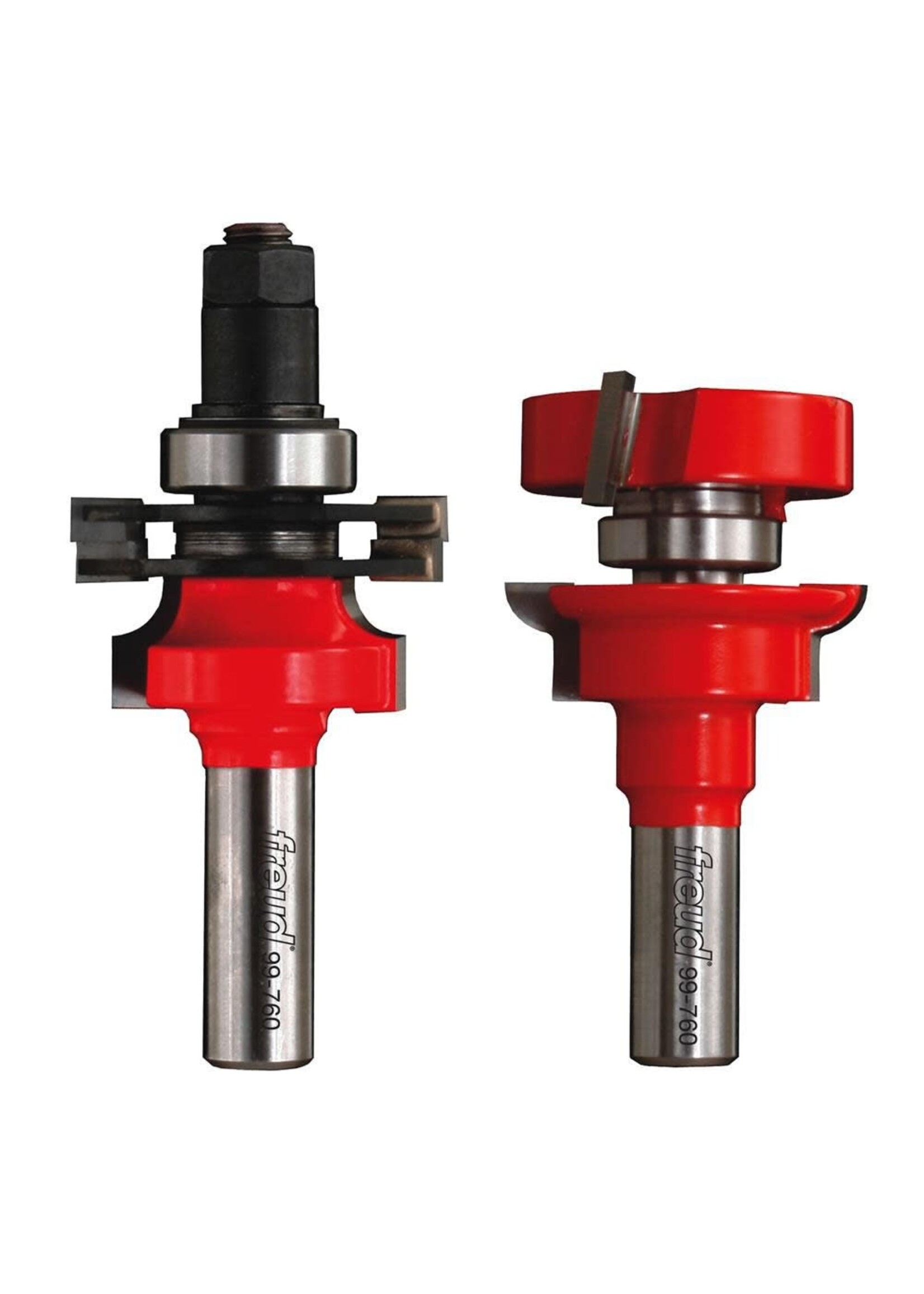

  • Freud/Diablo 1-11/16" Premier Adjustable Rail & Stile Bit - Round Over 99-760

1-11/16" Premier Adjustable Rail & Stile Bit - Round Over 99-760

$186.00
Excl. tax

Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock
Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
Patented Extended Tenon Capability for milling extra-strong long tenon join

The rating of this product is 0 out of 5

(0)
In stock

PRODUCT

OVERVIEW



Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.

  • Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
  • Patented Extended Tenon Capability for milling extra-strong long tenon joints
  • Unique cutter geometry to eliminate tearout
  • TiCo™ Hi-Density Carbide to maximize bit life and material finish
  • Freud Perma-SHIELD® Coating
Ideal For: producing extra-strong long tenon joints

TECHNICAL SPECIFICATIONS
LARGE RADIUS (R1) 7/32"
OVERALL DIA. (D) 1-11/16"
OVERALL LENGTH (H) 3-3/4"
SHANK DIA. (A) 1/2"
MAX RPM 16000
USED IN COMBINATION WITH



UPC CODE:008925087090

SUPPLIER PART#99-760
