Joining boards and letting in back panels with different depths of cut
Each set includes interchangeable bearings and a wrench to cut multiple depths with a single bit
Great for furniture makers, cabinetmakers and carpenters
PRODUCT
OVERVIEW

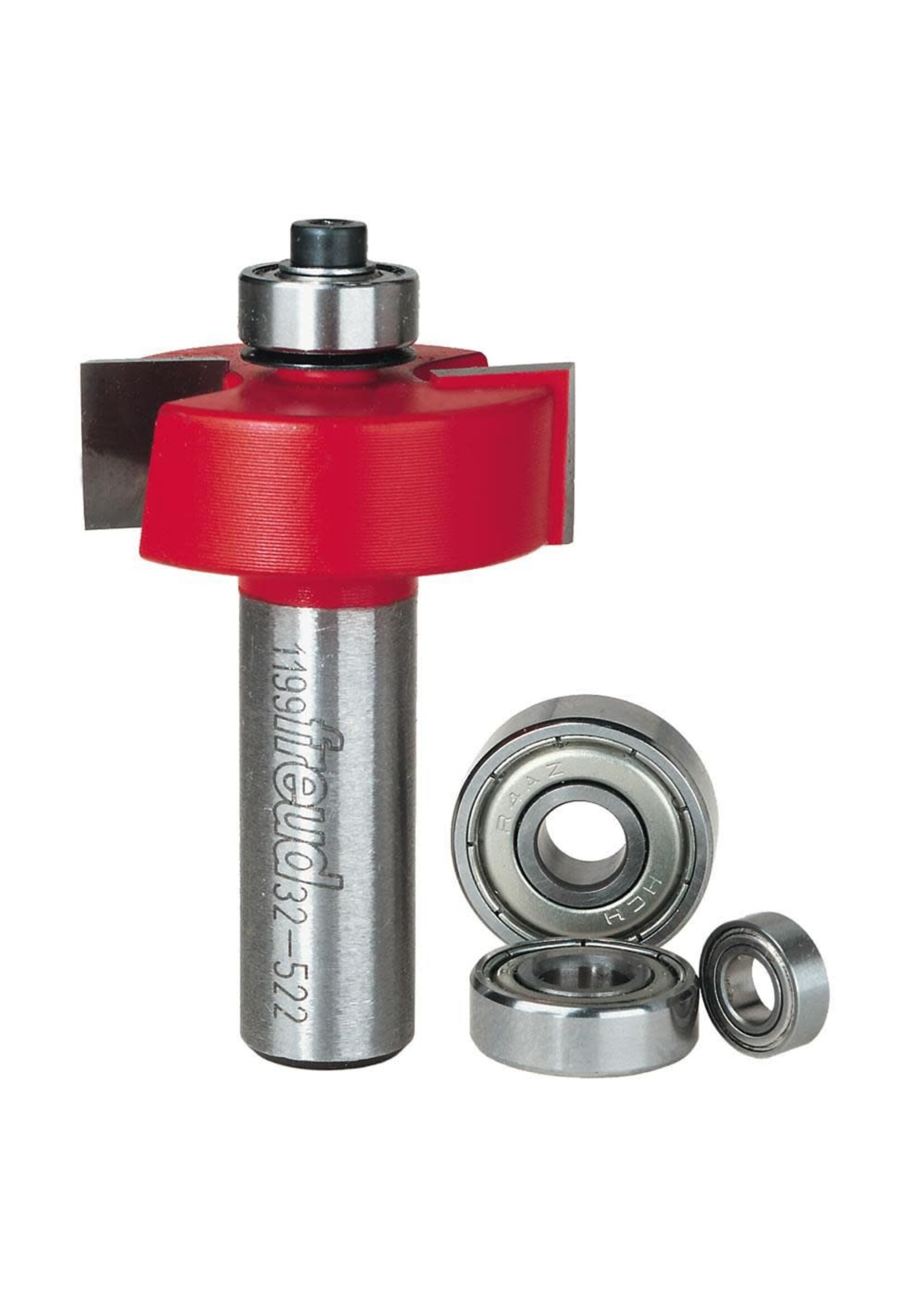

Freud Rabbeting Sets make versatile Rabbeting bits even more useful in the shop by offering a wide range of different depths of cut. With interchangeable bearings to cut rabbets of different depths, these sets provide a fast, easy way to adjust the size of the profile. Use them to make strong rabbeted joints, cut recesses to let in the back panels of cabinets, or create an interesting detail on built-up molding. Use in hand-held or table-mounted routers to cut hard or soft wood, plywood or composite material. 32-504, 32-524, and 32-526 can also be used as flush cutting trim bits. Wrench included
CUT DEPTH (C) | 5/16", 3/8", 7/16", 1/2" |
NUMBER OF CUTTERS | 2 |
OVERALL DIA. (D) | 1-3/8" |
OVERALL LENGTH (H) | 2-1/4" |
SHANK DIA. (A) | 1/2" |
CARBIDE HEIGHT (H) | 1/2" |
MAX RPM | 16000 |
#62-102 -3/8" Ball Bearing
|
|
#62-104 -1/2" Ball Bearing
|
|
#62-114 -1-1/8" Ball Bearing
|
|
#62-311 -Washer
|
|
#62-313 -Washer
|
|
62-113
|
|
62-402
|
UPC CODE:008925383192
SUPPLIER PART#32-522
