Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock
Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
Patented Extended Tenon Capability for milling extra-strong long tenon join
PRODUCT
OVERVIEW

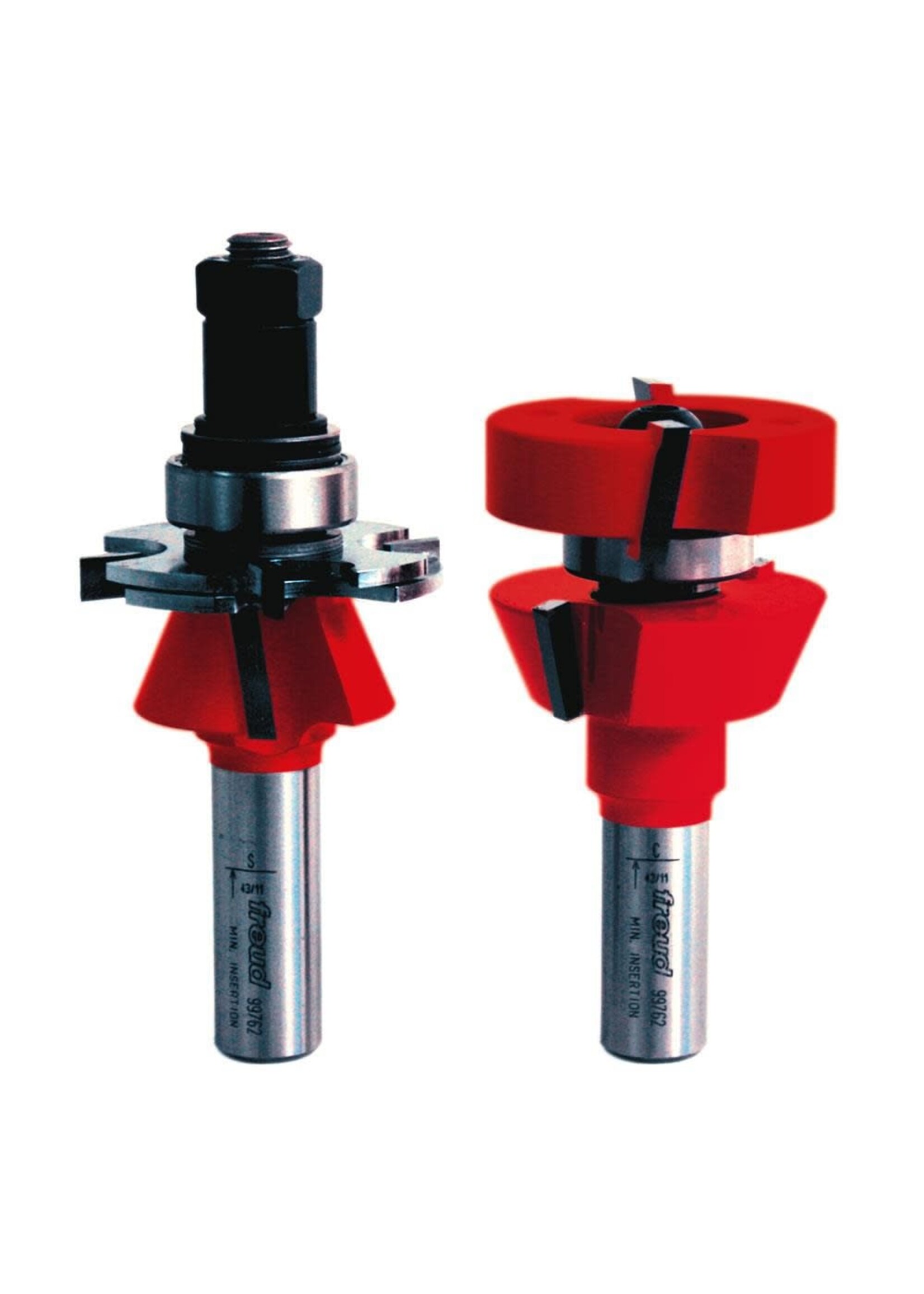

Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
OVERALL DIA. (D) | 1-11/16" |
OVERALL LENGTH (H) | 3-3/4" |
SHANK DIA. (A) | 1/2" |
MAX RPM | 16000 |
#54-760 -Glass/Screen Panel Door Add-on Cutter
|
|
#99-862 -1-11/16" Premier Adjustable Rail & Stile Bit - Shaker
|
UPC CODE:008925091615
SUPPLIER PART#99-762
