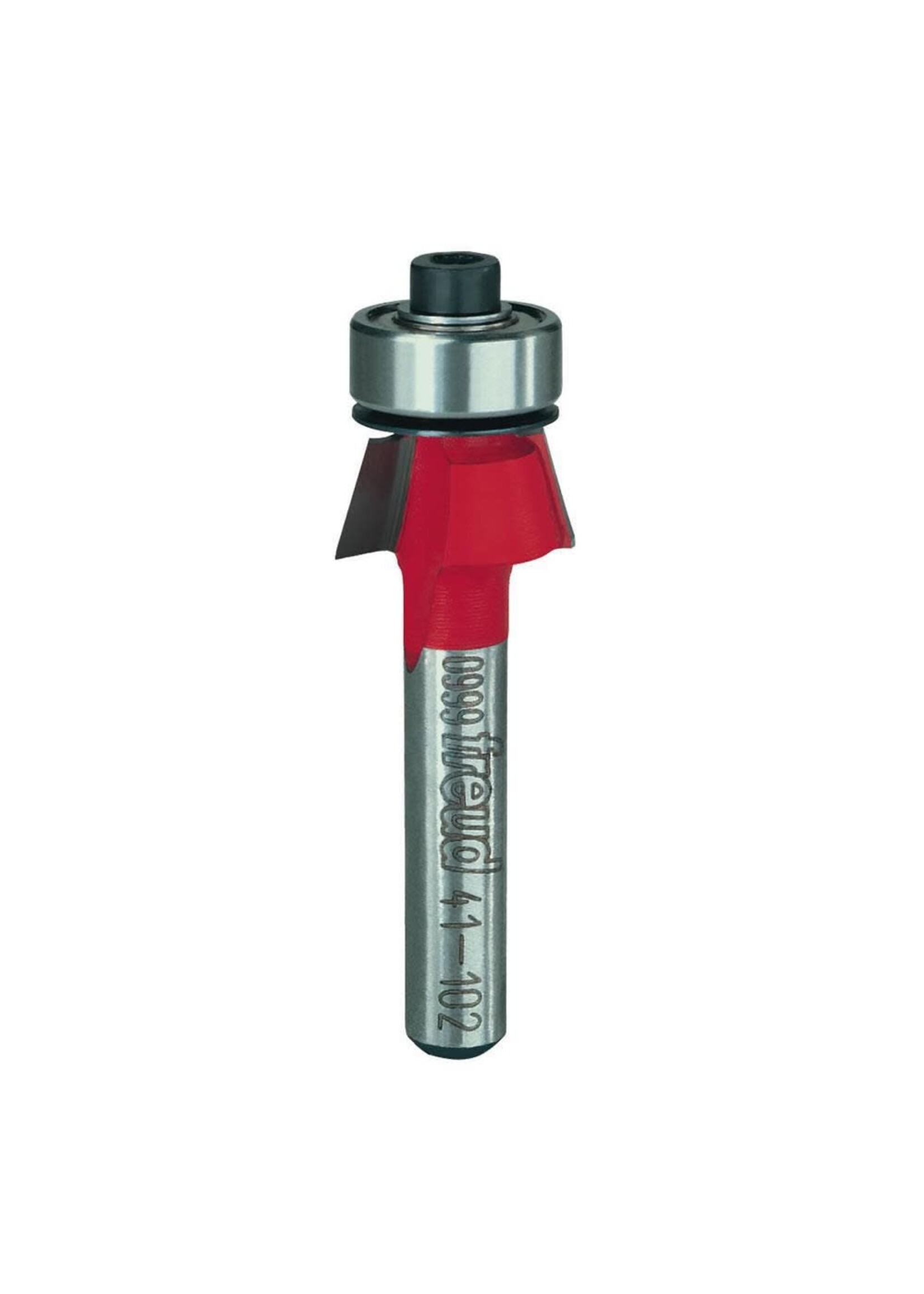

TWO FLUTE BEVEL TRIM BIT 41-102

19/32" Bevel Trim Bit 41-102

$35.00

Excl. tax

Routing a clean, finished edge on plastic laminates
Rout a clean, smooth edge of laminates with little of no time-consuming filing
Cuts all plastic laminates
41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide

PRODUCT

OVERVIEW

Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.

Rout a clean, smooth edge of laminates with little of no time-consuming filing
Cuts all plastic laminates
41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
Use in hand-held or table-mounted routers and laminate trimmers

Ideal For: Beveled edge on plastic laminates

TECHNICAL SPECIFICATIONS

ANGLE (D)	15°
BEARING DIA. (B)	1/2"
NUMBER OF CUTTERS	2
OVERALL DIA. (D)	19/32"
OVERALL LENGTH (H)	1-7/8"
SHANK DIA. (A)	1/4"
CARBIDE HEIGHT (H)	9/32"
MAX RPM	24000

UPC CODE:008925383925

SUPPLIER PART#41-102
